Installing French Drains to Solve Wet Gardens

Why Wet Ground Is Usually a Drainage Problem, Not Bad Luck

A lawn that squelches underfoot every February, a border where plants rot off at the crown, or a damp patch creeping along the base of a wall — these are rarely random. Water is collecting somewhere it cannot drain away, and it has to go somewhere. On heavy clay, in low-lying plots, or on ground compacted by a builder's digger, rain simply cannot percolate down quickly enough, so it sits in the topsoil and slowly moves sideways.

The result is saturated ground for weeks after the rain stops. Waterlogged soil starves roots of oxygen, softens subsoil, and keeps the base of walls permanently damp. A French drain is one of the oldest and most reliable ways to give that water a directed route away from where it is doing damage.

What a French Drain Actually Is

Despite the name, there is nothing complicated about it. At its simplest, a French drain is a trench filled with clean gravel that contains a perforated pipe running along the bottom. Groundwater seeps into the gravel, enters the pipe through its perforations, and travels along the pipe to a suitable outlet. The trench itself is lined with a geotextile membrane to stop fine soil silting up the gravel.

The key components are:

• Perforated pipe — usually 100mm rigid or flexible land drain, laid with the perforations facing down so water enters from below rather than silt washing in from above.
• Clean single-size gravel — washed 20mm stone is ideal. Avoid mixed grades or anything with fines in it.
• Geotextile membrane — a permeable fabric that lines the trench and wraps over the gravel, letting water through but holding soil back.
• A continuous fall — the pipe must run downhill from start to finish, or the water simply sits in it.

Designing the Route: Fall, Depth and Outlet

Start by working out where the water can go. Options include a soakaway, a gravel-filled pit, a lower part of the garden that already drains freely, or a surface water sewer if you have permission to connect. Discharging into a watercourse or a surface water sewer may need consent, so check before you dig.

Fall matters more than almost anything else. Aim for a minimum of 1 in 100 — that is 1 metre of drop for every 100 metres of run — and 1 in 60 is more forgiving if you can manage it. Set the trench depth so the pipe sits 400–600mm below the surface, deep enough to intercept groundwater but well clear of foundations. Keep a drain at least 1.5 metres away from any building footing, and never dig deeper than the footing itself without professional advice.

If you are protecting a house, run the drain parallel to the wall, slightly uphill of it, so water is intercepted before it reaches the building. Mark the line with pegs and a string line, and check the fall with a spirit level on a straight edge as you go.

Digging and Laying the Drain

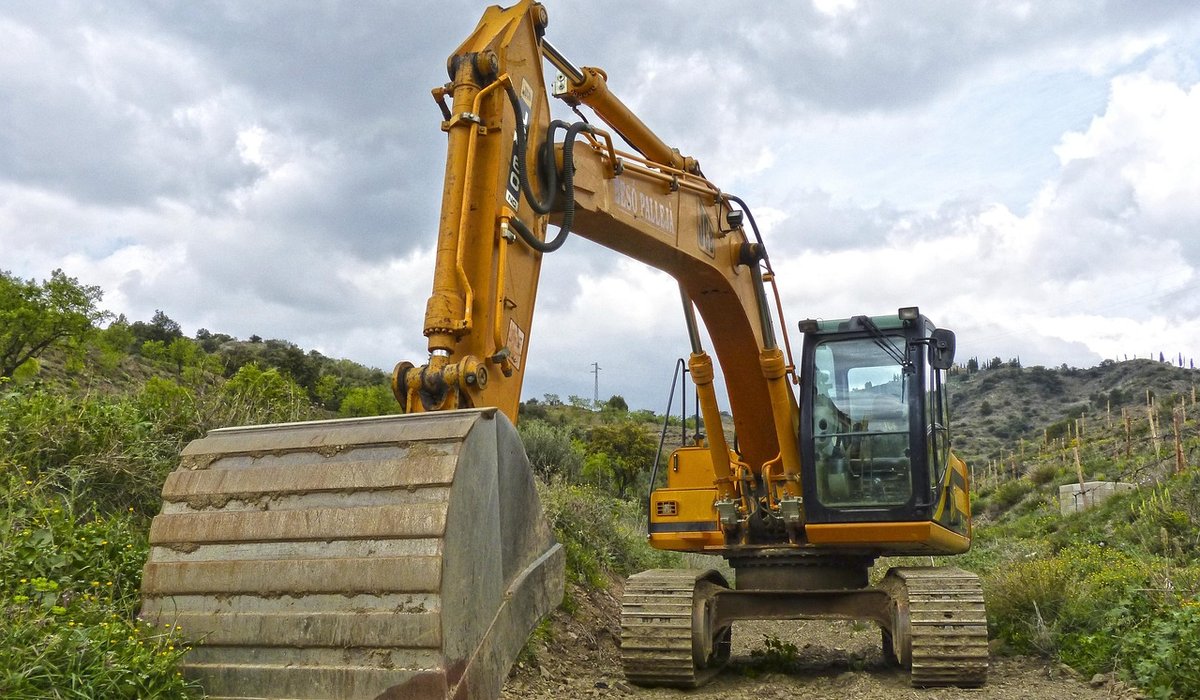

Cut a trench roughly 300–450mm wide with a spade or mini-digger, keeping the bottom as flat and consistent as you can. Tidy the sides, then line the trench with geotextile, leaving enough overlap on both sides to wrap over the top later.

Add around 100mm of gravel as a bed, then lay the pipe on top, keeping the fall steady. Where the pipe changes direction, use proper swept bends rather than sharp elbows — they clog far less. Join lengths with the correct couplings and make sure the perforations stay facing downwards throughout.

Once the pipe is in, surround it with another 150–200mm of gravel, taking care not to dislodge the pipe. Leave a rodding point or inspection chamber at the head of the run, and a silt trap before the outlet if there is any chance of debris washing through. At the outlet, discharge onto a stone-filled apron or into a soakaway crate — never straight onto a neighbour's ground.

Backfilling and Finishing

Fold the geotextile over the gravel so the two edges overlap by at least 150mm, then backfill with the excavated soil, turf or planting. On a lawn, reinstate with topsoil and seed, and expect a slight settlement line for a season or two — top it up as it settles.

You can also finish a French drain as a visible gravel strip or a planted border, which is often neater in a small garden. Keep heavy plant roots out of the trench, and avoid parking or storing materials on top of the line, as compaction undoes much of the benefit.

Keeping It Working and Knowing the Limits

A French drain is a long-term investment rather than a quick fix. Costs vary widely, but a contractor-installed drain typically runs somewhere between £25 and £60 per linear metre, depending on access, ground conditions and how spoil is removed. Materials alone for a DIY job are considerably less.

Maintenance is modest but real:

• Check the outlet after heavy rain and clear any leaves or silt.
• Rod or jet the pipe every few years if flow slows.
• Keep soil and mulch off the gravel surface so fines cannot wash in.

Be honest about limits, too. A French drain handles shallow groundwater and lateral seepage well, but it will not solve a genuinely high water table pressing up from below, and it cannot compensate for a garden that sits lower than everything around it. In those cases, a sump and pump system or a full land drainage scheme designed by a groundworks specialist is the better route. Get the fall and the outlet right, though, and a well-built French drain will quietly keep your garden usable for decades.
